Honeycomb Activated Carbon for VOCs & Odor Removal – How to Choose the Best Supplier?

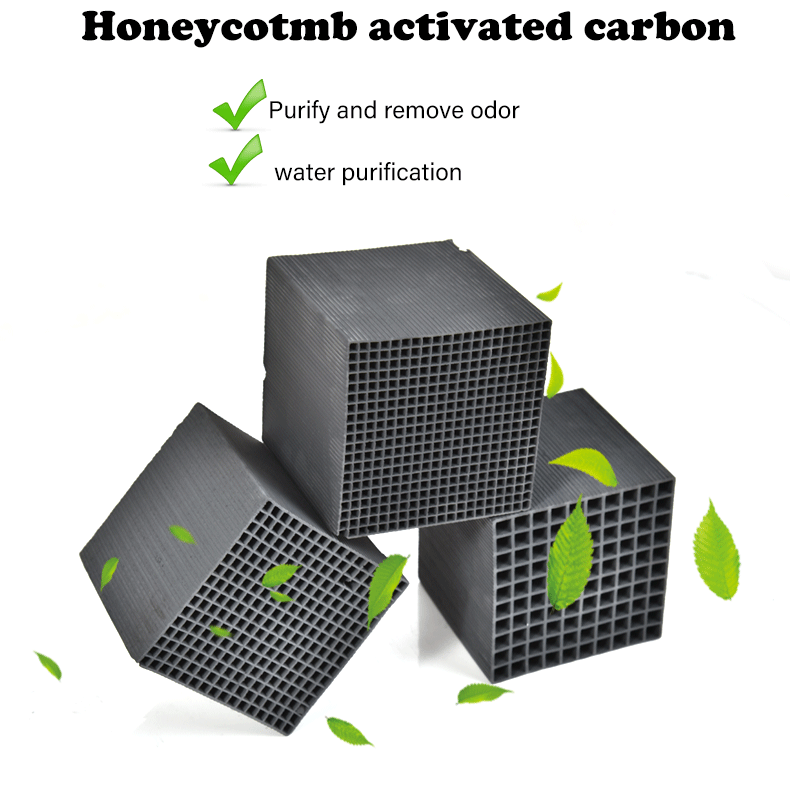

1. What is Honeycomb Activated Carbon?

Honeycomb activated carbon is a **high-efficiency, block-shaped adsorbent** made from **coal-based or

wood-based powdered carbon**, extruded into a **uniform hexagonal cell structure**. It is widely used in

**high-airflow, low-concentration waste gas treatment systems**.

Key Features:

✔ **Low pressure drop** – Ideal for **large air volume systems** (10,000–100,000 m³/h)

✔ **High adsorption capacity** – Iodine value ≥600 mg/g, benzene adsorption ≥35%

✔ **Water-resistant options** – Some grades allow **water washing & regeneration**

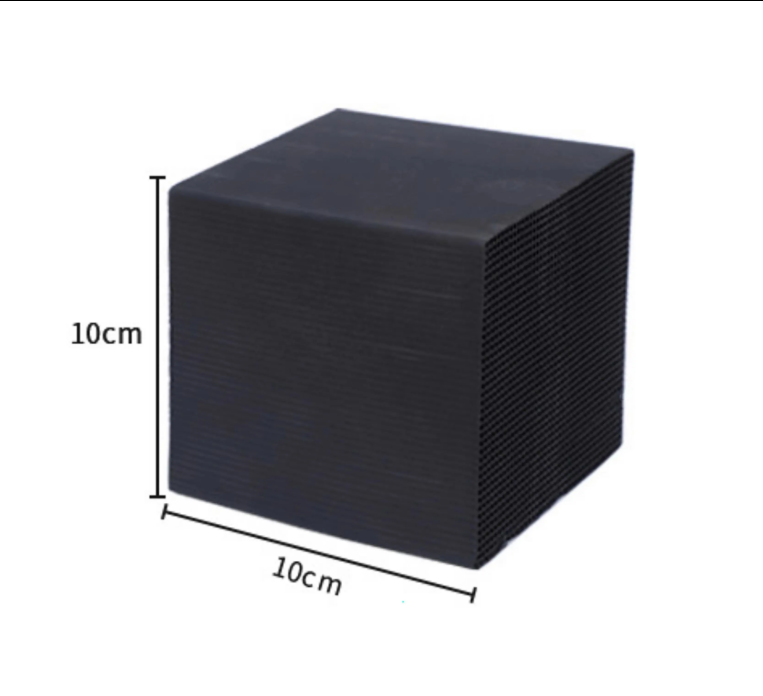

✔ **Modular design** – Standard sizes: 100×100×100mm, 50×50×50mm

Technical Specifications:

| **Parameter**       | Standard Grade | High-Iodine Grade | Water-Resistant Grade |

|---------------------|---------------|-------------------|-----------------------|

| **Iodine Value (mg/g)** | 500–600       | 650–800           | 550–700               |

| **Benzene Adsorption (%)** | ≥25%         | ≥40%              | ≥30%                  |

| **Water Resistance** | No            | No                | ≥95% (hydrophobic)    |

| **Applications**     | General waste gas | Chemical VOCs    | Humid environments    |

2. Top 5 Industrial Applications

① VOCs (Volatile Organic Compounds) Treatment

- **Printing/painting industries** – Adsorbs benzene, toluene, xylene

- **Case Study:** A **car paint shop** reduced VOC emissions by **98%** using our honeycomb carbon.

 ② Odor Control

- **Wastewater plants, landfills** – Removes **H₂S, NH₃, mercaptans**

③ Laboratory & Chemical Fume Hoods

- Captures **acid fumes, solvents, and toxic gases**

④ Indoor Air Purification

- Used in **shopping malls, subway stations, hospitals**

⑤ Specialized Uses

- **Military gas masks, nuclear air filtration**

---

3. Honeycomb vs. Granular & Fiber Activated Carbon



    title "Market Share in Waste Gas Treatment"

    "Honeycomb Carbon" : 55

    "Granular Carbon" : 30

    "Activated Carbon Fiber" : 15

```

✅ Why Honeycomb Carbon Wins?

✔ **1/5 the pressure drop** of granular carbon → **Higher airflow efficiency**

✔ **Easy installation** – Stackable modules, no complex filling required

✔ **Cost-effective** – 60% cheaper than carbon fiber for the same adsorption capacity

---

4. How to Avoid Low-Quality Honeycomb Carbon?
